90KV X-ray Inspection Unicomp AX7900 for Cable Terminal Crimp Quality

Product Categories
Unicomp Technology
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

90KV X-ray Inspection Unicomp AX7900 for Cable Terminal Crimp Quality

  • 1
  • 2

Supply Ability : 30 sets per month

Model Number : AX7900

Pixel Matrix : 1536*1536[pixel]

MOQ : 1Set

Delivery Time : 15 work days

CPU Model : i7 6 generation

Brand Name : UNICOMP

Type : Electronic semiconductor

Payment Terms : L/C,T/T

Price : can negotiate

Power consumption : 0.8KW

Certification : CE, FDA

Frame Rates : Max30fps

Place of Origin : China

RAM : 16G

Packaging Details : Wooden Case, Waterproof, Anti-collision

Contact Now

90KV X-ray Inspection Unicomp AX7900 for Cable Terminal Crimp Quality
The Unicomp AX7900 90KV X-ray inspection system is specifically designed for cable terminal crimp quality assessment and comprehensive electronic component analysis.
System Overview
The AX7900 features a 90kV/5μm micro-focus X-ray tube and high-performance FPD detector in a multifunctional workstation design. It includes standard XY multi-axis motion with optional ±60° tilt capability. Independent Z-axis movement of both X-ray tube and FPD enables flexible magnification and field of view adjustment. Integrated with target positioning system and professional DXI image software, it supports XY programming for automated batch inspection routines.
Key Applications
  • LED, SMT, BGA, CSP, Flip Chip Inspection
  • Semiconductor and Packaging Components
  • Battery Industry Analysis
  • Electronic Components and Auto Parts
  • Photovoltaic Industry Inspection
  • Aluminum Die Casting and Moulding Plastic
  • Ceramics and Other Special Industries
System Features
  • 90KV 5μm X-ray tube with FPD Detector
  • Multi-function workstation with X-Y multi-axis movement
  • ±60° "Arc" motion (Optional)
  • Motion controls include X/Y table motion plus Z-axis tube and detector movement
  • Multi-function DXI image processing system
  • X/Y programming function for multiple image inspection routines
  • Maximum loading area: 420mm x 420mm
  • Maximum detection area: 380mm x 380mm
  • System magnification up to 300X
  • BGA void/area auto-measurement with report generation
Technical Specifications
Item Definition Specs
System Parameters Size 1215(L) x 1325(W) x 1700(H) mm
Weight 1240 kg
Power 220V±10% 50Hz/60Hz 4A
Power Consumption 0.8 kW
X-ray Tube Type Closed
Max. Voltage 90 kV
Max. Power 8 W
Spot Size 5 μm
X-ray System Intensifier FPD
Monitor 24" HD
Geometric Magnification 52X
Detection Region Max. Loading Size 600mm x 520mm
Max. Inspection Area 505mm x 440mm
X-ray Leakage <1 μSv/h
Inspection Images
90KV X-ray Inspection Unicomp AX7900 for Cable Terminal Crimp Quality
Application Fields
90KV X-ray Inspection Unicomp AX7900 for Cable Terminal Crimp Quality

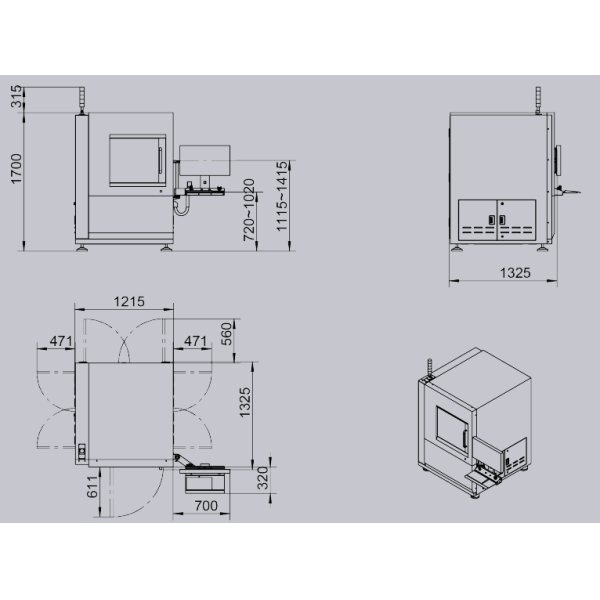

Dimensions and Appearance
90KV X-ray Inspection Unicomp AX7900 for Cable Terminal Crimp Quality

Product Tags:

90KV X-ray inspection cable terminal



Unicomp AX7900 crimp quality inspection



Hot sales X-ray crimp analyzer


Buy cheap 90KV X-ray Inspection Unicomp AX7900 for Cable Terminal Crimp Quality product

90KV X-ray Inspection Unicomp AX7900 for Cable Terminal Crimp Quality Images
