Motorcycles Safety inspecting Cracks Sprocket UNICOMP NDT Die CASTING X-RAY UNC225

Model Number : UNC225

Maximum penetration : Class A imaging standard 150mm(AL)/25mm(Q235)

MOQ : 1Set

Delivery Time : 30 days

Effective dectection area : 430*430[mm]

Payment Terms : T/T,L/C

Weight : 5T

Voltage : 225kv

Price : can negotiate

Power supply : 380AC/50Hz

Tube Type : Split Tube

Supply Ability : 30 sets per month

Dimension : 2400mm*2400mm*2442mm(L*W*H)

Brand Name : UNICOMP

Certification : CE

Place of Origin : China

Packaging Details : Wooden Case, Waterproof, Anti-collision

Contact Now

UNC225 Industrial X-Ray Inspection System
The UNICOMP UNC225 is a heavy-duty, high-stability industrial X-ray inspection solution designed for foundries, R&D centers, laboratories, and academic institutions. This robust system integrates premium digital flat-panel detector technology with high dynamic radioscopy to deliver sharp, high-resolution images with exceptional clarity.
Key Features
  • Smart ergonomic design for simplified operation
  • Custom configuration options for wheels and tires
  • Renowned reliability and robust construction
  • Brilliant image quality with high contrast for both spot-check samples and series inspection
Technical Specifications
Attribute Value
Maximum Penetration (FE) 150mm/25mm
Equipment Weight 5T
System Dimensions (L*W*H) 2400mm * 2400mm * 2442mm
X-ray Tube 225KV
Power 800W/1800W
Pixel Pitch 154μm
Minimum Focal Spot 0.4mm/1.0mm
Maximum Inspection Area Φ600mm x 800mm
Inspection Images
Motorcycles Safety inspecting Cracks Sprocket UNICOMP NDT Die CASTING X-RAY UNC225

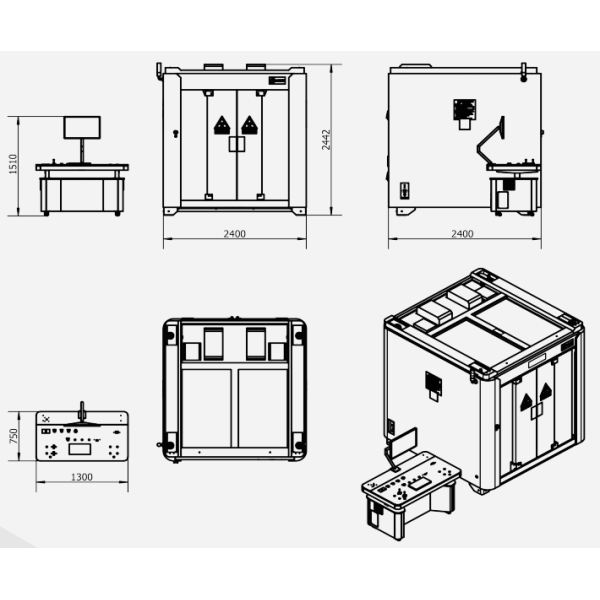

Dimensions and Appearance
Motorcycles Safety inspecting Cracks Sprocket UNICOMP NDT Die CASTING X-RAY UNC225
Applications and Detection Capabilities
Engineered for multi-material radiographic flaw screening, the UNC225 system performs high-precision NDT inspection for the following workpieces:
  • Automotive aluminum castings: engine blocks, cylinder heads, pistons, steering knuckles
  • Aero-grade precision turbine investment castings
  • Alloy wheel hubs, automotive rims and tire reinforcing components
  • FRP fiber-reinforced composite materials
  • High-performance structural ceramics
  • Metal & plastic additive manufacturing (3D printed) components
